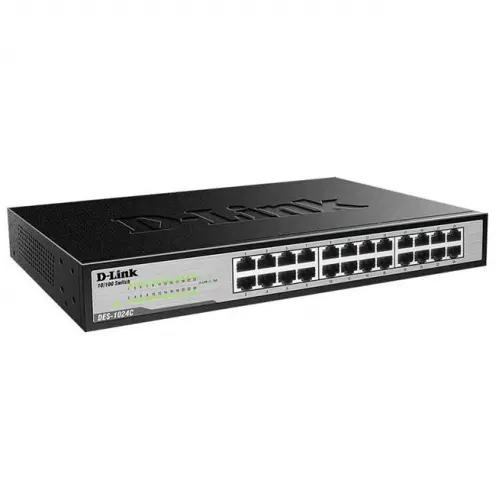

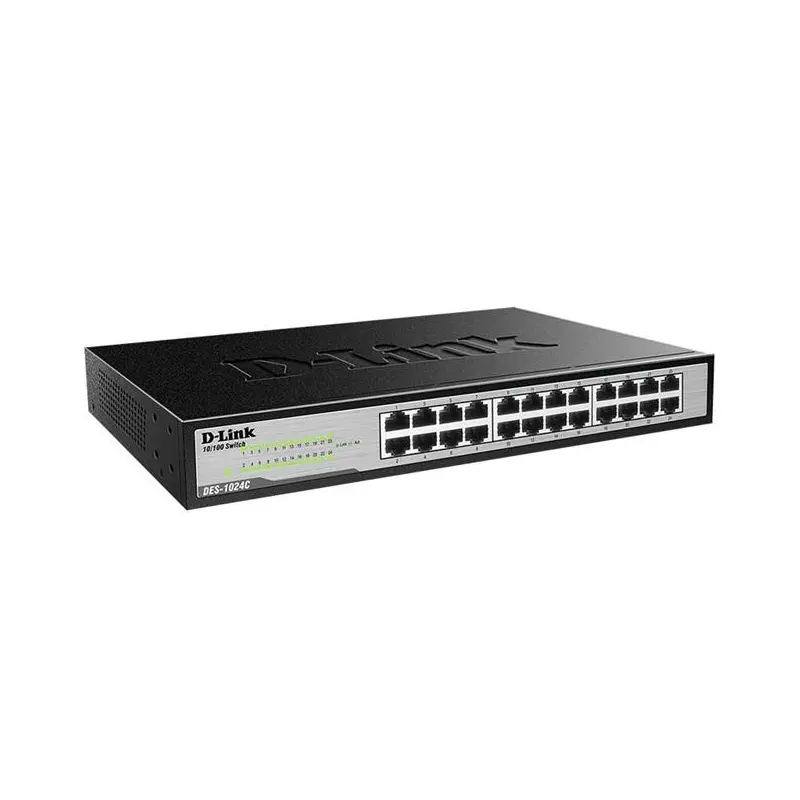

D-LINK DES-1024D 24 PORT 10/100 METAL KASA SWITCH

Ürün Kodu : NS100DLI0055

D-LINK DES-1024D 24 PORT 10/100 METAL KASA SWITCH

ÖZELLİKLER

10/100 Port : 24
Combo Özelliği : Yok
Extend Modu : Yok
GIGABIT Port Sayısı : Yok
Kasa Tipi : Masaüstü Metal Kasa
10/100 Port 24
Combo Özelliği Yok
Extend Modu Yok
GIGABIT Port Sayısı Yok
Kasa Tipi Masaüstü Metal Kasa
Layer Katmanı Yok
Poe Özelliği Yok
RJ45 Uplink Yok
SFP Girişi & SFP Uplink Yok
Toplam Port Sayısı 24
Yönetilebilirlik Yok
Açıklama Genel Özellikler: Fiziksel Özellikler Key Features • Cost-effective Fast Ethernet for home networks and SOHO • Auto MDI / MDIX on all ports • Switching Method: Store-and-forward • Ethernet / Fast Ethernet: Full duplex / half duplex • IEEE 802.3x Flow Control • The Plug-and-play Switching 4.8 Gbit / s Standards • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) • ANSI / IEEE 802.3 NWay auto-negotiation of speed and mode • IEEE 802.3x Flow Control Protocol CSMA / CD Data rate • Ethernet: - 10 Mbps (half duplex) - 20 Mbps (full duplex) • Fast Ethernet: - 100 Mbps (half duplex) - 200 Mbps (full duplex) Number of Ports 24-port 10/100Mbps Fast Ethernet Topology Star Network Cables • 10BASE-T: - UTP Cat. 3/4/5/5e (100m max.) - EIA/TIA-586 100-ohm STP (100m max.) • 100BASE-TX: - UTP Cat. 5/5e (100m max.) - EIA/TIA-586 100-ohm STP (100m max.) Interfaces transmission medium Automatic detection of MDI / MDIX on all ports Indicators • In the Port: - Link / Activity • On the device: - Power Switching Method Store-and-forward Table MAC-addresses 8K device Study of MAC-addresses Automatic updates Speed ??Packet Filtering / Forwarding (half duplex) • Ethernet: 14,880 packets per second. the port • Fast Ethernet: 148,800 packets per second. the port Buffer RAM 256KB (2Mbit) Fiziksel Özellikler Power Input 100 ~ 240 VAC, 50/60 Hz internal universal power supply Power consumption • Power on. (Standby): Power Input: 1.18 W DC 2.09 W ac • Max.: Power Input: 2.72 W DC 4.14 W ac Heat release • Power on. (Standby): 7.13 BTU / h • Max.: 14.13 BTU / hr MTBF 2,058,943 hours Operating temperature From 0 º to 40 º C Storage temperature From -10 ° to 70 ° C Operating Humidity From 10% to 90%, non-condensing Humidity From 5% to 90%, non-condensing Measurements 280 x 125.8 x 44 mm Certifications • FCC Class A • ICES-003 Class A • CE Class A • C-Tick Class A • VCCI Class A • cUL • LVD
Model Link https://www.dlink.com.tr/tr/products/1/2249.html
