H3C markasına ait ürünlerin
Platinium Partneri ARTSİSTEM'dir.
| Ag Iletisim Hizi | : 1733 Mbps |
| Anten Sayisi | : 2X2 MIMO |
| Harici Anten Destegi | : Yok |
| Port Sayisi | : 2 Port Gigabit |
| Tip | : Iç Ortam (Indoor) |
İncelediğiniz ürün hakkında formu doldurup bize iletin.
| Hardware specifications | |||
| Features | WA536-WW | ||
| Weight | 0.728kg | ||
| Dimensions (excluding mounting accessories) |
215 x 215 x 47.5mm | ||
| Speed | 867Mbps (5G) 867Mbps (5G) 400Mbps (2.4G) |
||

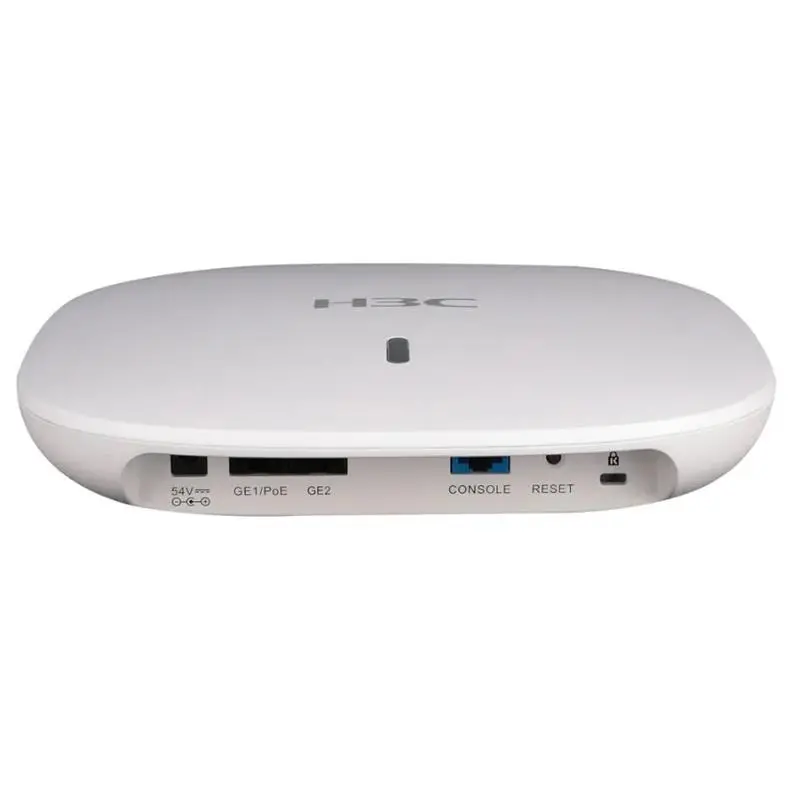

| Fixed port | Two 10/100/1000Mbps Ethernet ports (only GE#1 supports PoE+) Network ports support link aggregation(LACP) for redundancy and increased capacity One console port |
||
| Local power supply | 54VDC | ||
| Built-in antenna | Dual-band low-E omni-directional antenna |
||
| Antenna gain | 2.4GHz: 6dBi 5GHz: 6dBi |
||
| Maximum transmit power(Combined power, limited by local laws and regulations) | 2.4GHz: 18dBm 5GHz: 24dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
||
| Adjustable power | 1dBm | ||
| Power consumption | <15W | ||
| Features | WA536-WW | ||
| Positioning | Indoor 802.11ac Wave2 AP | ||
| 11ac Supported | Streams 5G(1):2x2 5G(2):2x2 2.4G:2x2 |
||
| 20/40/80MHz mode | |||
| MU-MIMO | |||
| 1733Mbps(PHY) (WA560-WW & WA538-WW Radio1 only) | |||
| A-MPDU | |||
| Ag Iletisim Hizi | 1733 Mbps |
| Anten Sayisi | 2X2 MIMO |
| Harici Anten Destegi | Yok |
| Port Sayisi | 2 Port Gigabit |
| Tip | Iç Ortam (Indoor) |
| Model Link | https://www.h3c.com/en/Support/Resource_Center/EN/Wireless/Catalog/802.11ac_Wave2/WA536/ |
